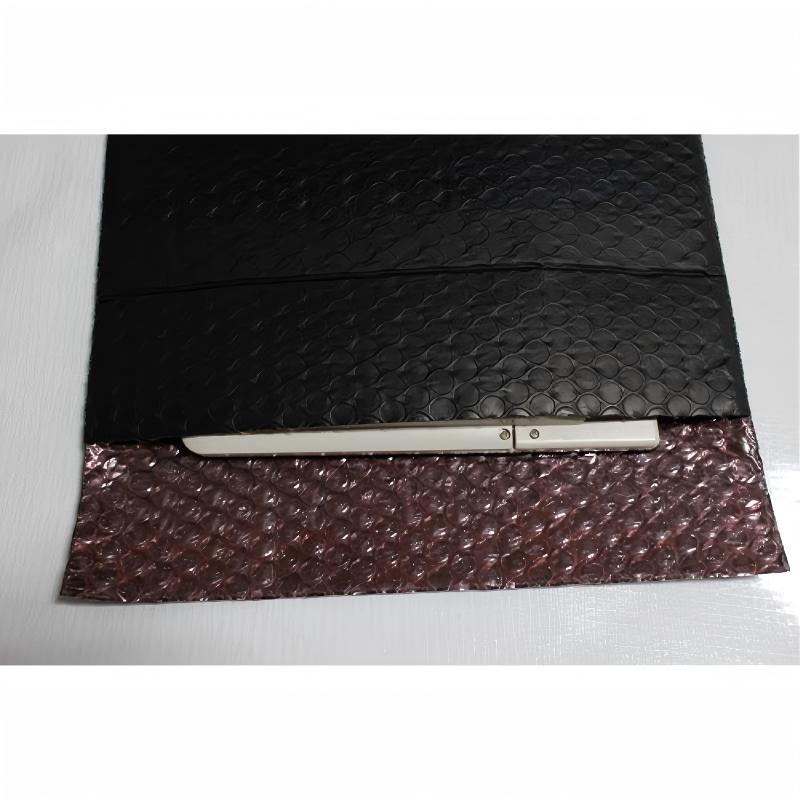

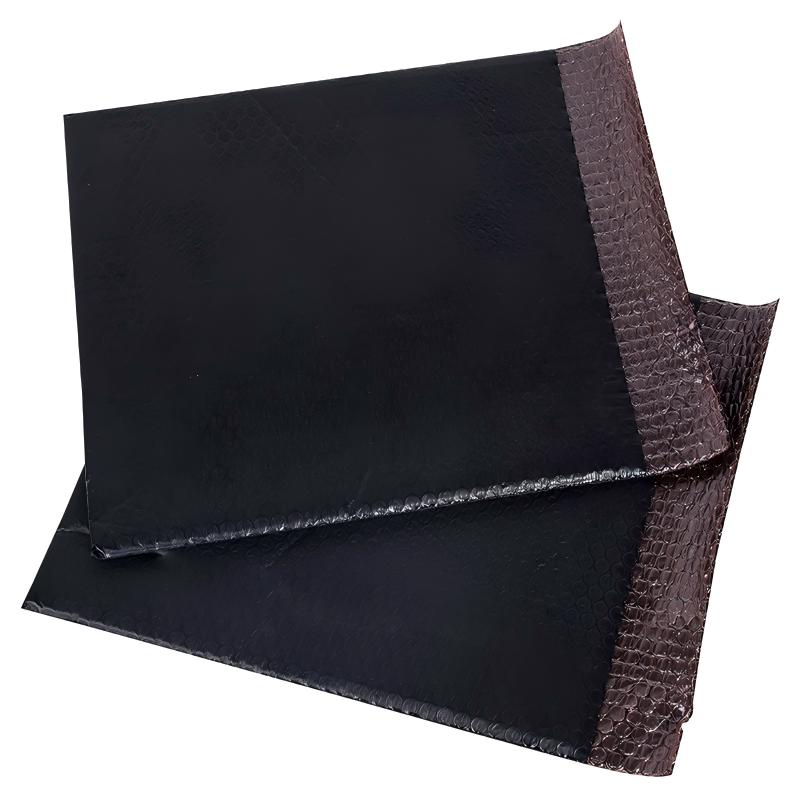

ESD Conductive Bubble Bag, Black Conductive Film Composite Red Double-Sided Anti-Static Bubble Packaging, Shockproof & Cushioning
Welcome Calls：0086 135 5564 2447
Product Introduction
Unitech Anti-Static Bag Detailed Introduction

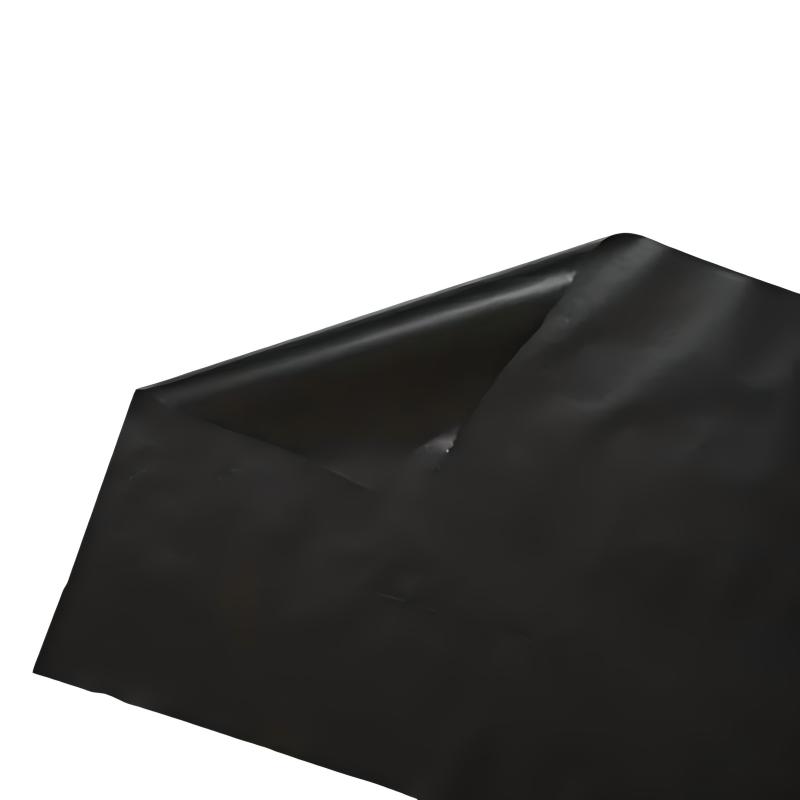

一. Core Material & Structure of Conductive Film
二. Key Performance Parameters (Industry Standard Level)
|
Performance Index |
Parameter Details |
Description |
|

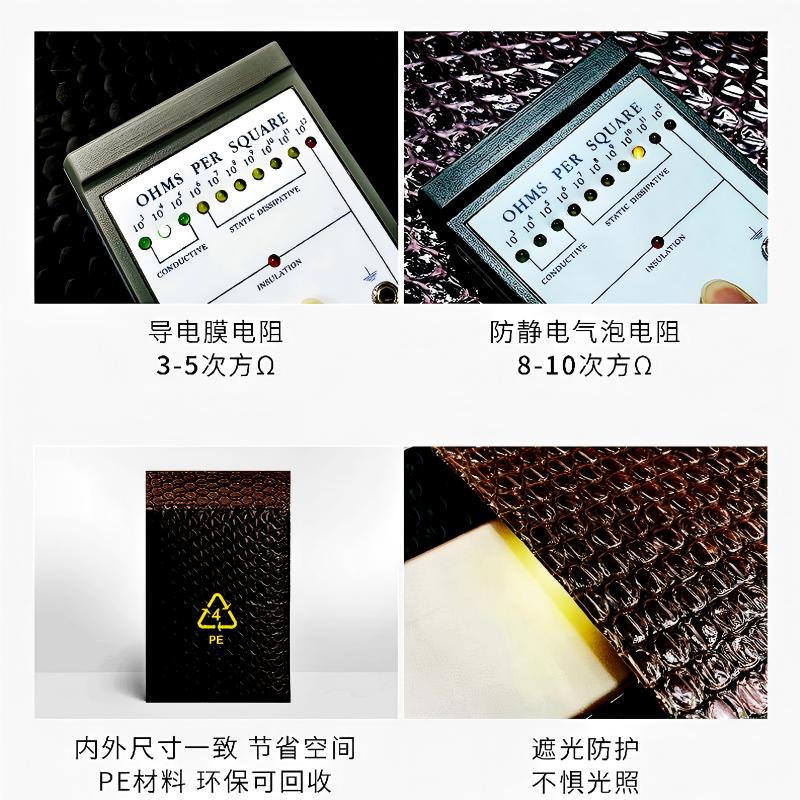

Surface Resistivity |
Conductive Film: 10³~10⁵ Ω |
Quickly dissipates surface static electricity to avoid charge accumulation |
|
Inner Bubble Film Resistivity |
10⁸~10¹⁰ Ω |
Prevents electrostatic breakdown and provides double protection |
|
Temperature Resistance Range |
-40℃ ~ +80℃ |
Adapts to different storage and transportation environments with stable performance |
| Thickness |
Standard: 0.03~0.08mm (Customizable) |
Balances flexibility and puncture resistance |
| Environmental Compliance |
Compliant with ROHS & REACH Standards |
Heavy metal-free, recyclable, suitable for export products |
三. Core Functions & Advantages
1. Dual Protection Against Static Electricity
◦ The outer conductive film quickly dissipates static electricity generated by external friction, preventing electrostatic dust adsorption or electrostatic field formation;
◦ The inner anti-static bubble film prevents static electricity generated by product friction inside the bag, protecting electrostatic-sensitive components such as chips and circuit boards from damage.
2. Superior Cushioning & Shockproof Performance
◦ The plump and uniform bubble layer absorbs and disperses impact forces during transportation, effectively protecting precision components from damage in a 3-meter drop test.
◦ The film has strong toughness, puncture resistance and tear resistance, and is not easily punctured by sharp edges.
3. Moistureproof, Dustproof & Scratch-Resistant
◦ The conductive PE film itself has good waterproof and moistureproof properties, isolating moisture and dust to avoid oxidation of metal pins or short circuits caused by damp components.
◦ The matte surface is not easily scratched, reducing appearance wear and tear during transportation.
4. Long-Lasting Stability, Unaffected by Temperature & Humidity
◦ Conductive performance does not degrade with changes in air humidity, ensuring long service life and stable anti-static effect, avoiding short-term failure.
四. Application Scenarios & Customization Options

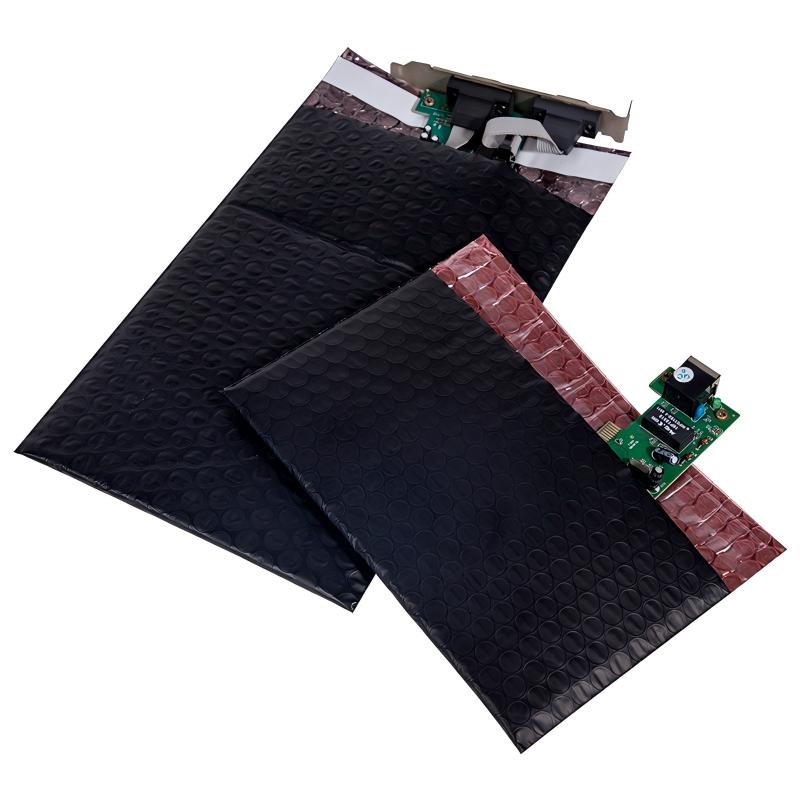

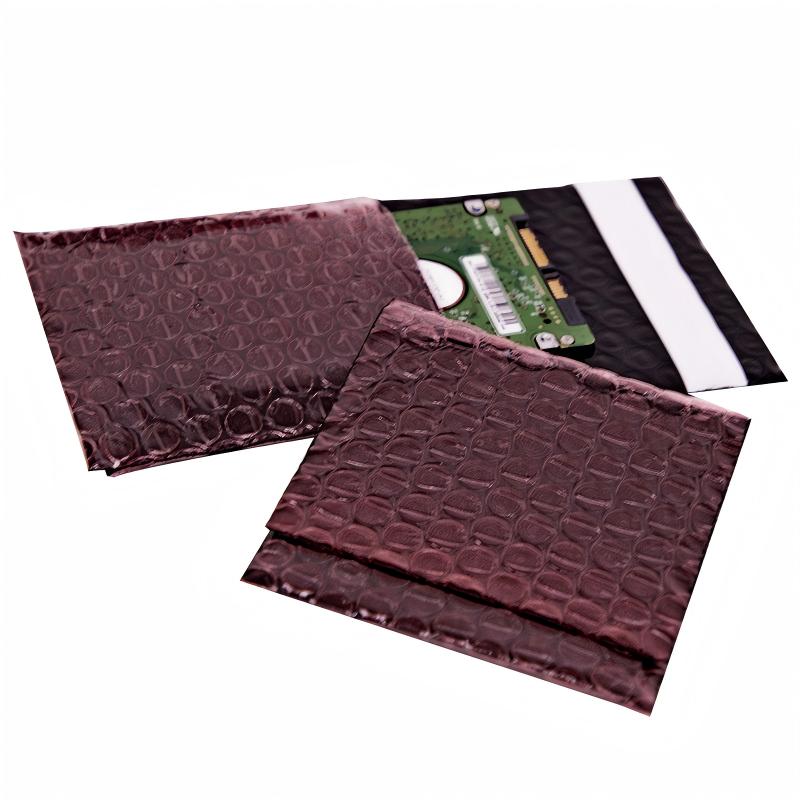

• Typical Applications: Packaging, transportation and storage of electrostatic-sensitive electronic products such as chips, PCB circuit boards, connectors, precision instruments, digital accessories and communication modules.
• Customizable Options:

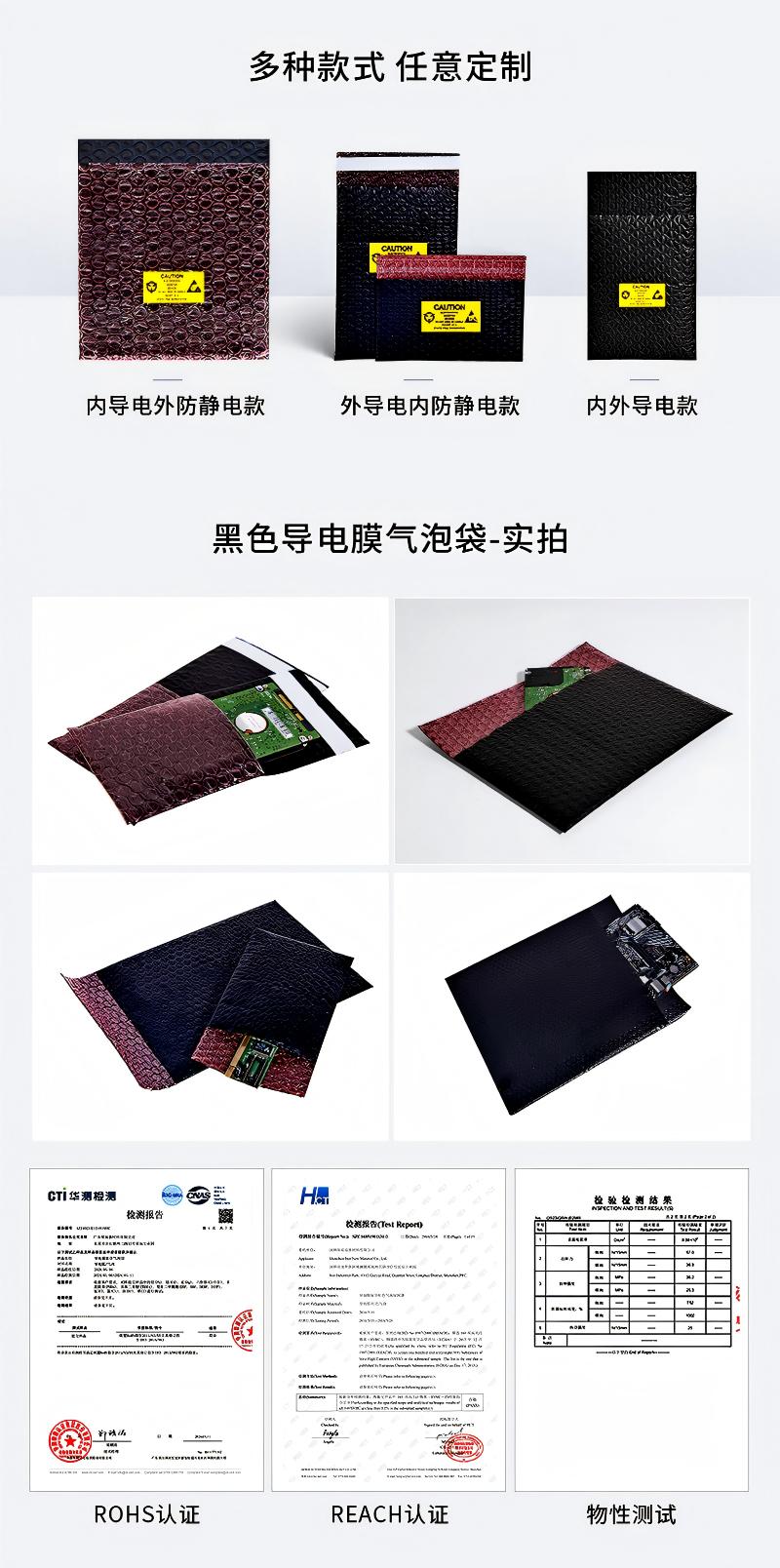

1. Size Specifications: Flat pouches / envelope-style mailers, with custom length, width and thickness available according to customer requirements.
2. Resistivity: Adjust the resistance range of the conductive film according to different protection level requirements.
3. Printing: Customizable with logos, warning messages, specifications and other information.
